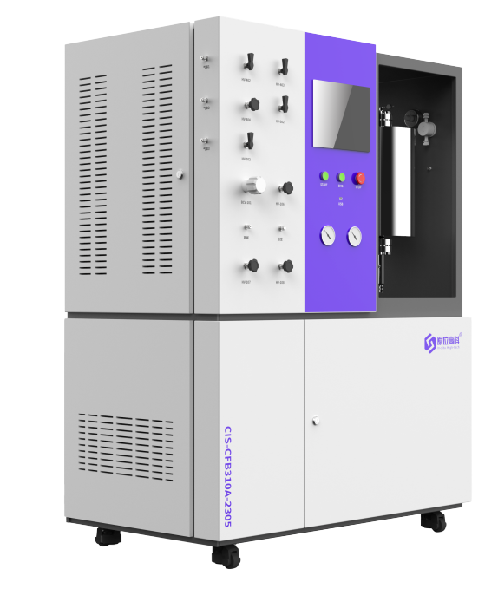

joule-heated fixed reactor

joule-heated fixed reactor

Product introduction

The reaction tube is heated rapidly by the Joule thermal fixed bed through the output pulse of the Joule heating power supply or the stable DC current, and the gas input of the reaction device body and the auxiliary control of preheating and tracing conditions can achieve the required reaction conditions. Compared with the traditional heating method, Joule heating can greatly improve the reaction efficiency and reduce the operating cost

Online Inquiry

Product parameter

ProjectIndicatorsParameters
Number of reaction channels-Customize on demand
reaction conditionsMaximum operating temperature1200 ℃
Maximum operating pressure10MPa
Feed moduleFeed compositionSingle gas phase, multi-component gas phase, gas-liquid two-phase
Feed pretreatment methodFiltration, vaporization, preheating, mixing
Gas feeding modemass flow controller
Reaction ModuleCatalyst requirementsCustom particles (conductive), powder (plus conductive carrier)
Sample loadingCustomize on demand
Material of reaction tubeQuartz tube (inner tube), stainless steel tube (outer tube)
Stainless steel material310S, 316L, 304
Heating moduleHeating modejoule heating
Device compositionCarbon rod, carbon paper/silicon carbide particles, quartz inner tube, stainless steel outer tube, cooling system
Total power of unit (KW)10
Product Separation ModuleSplit Modegas-liquid separation
Separation deviceCondenser, gas-liquid separator
Product Analysis Module-Off-line sampling, on-line GC/MS/IR sampling
Electric control mode-Touch screen control
System & Auxiliary ParametersPower supply20A,AC380V,50Hz, grounding resistance<4ω<>
Size (cm)Less than 120*70*180 (length * width * height), if necessary, can be specially customized
SecurityElectrical safety chain, the use of hardware and software combination of safety design, overpressure, overtemperature alarm; unloading valve overpressure unloading protection
