In situ microscopic observation system

Product introduction

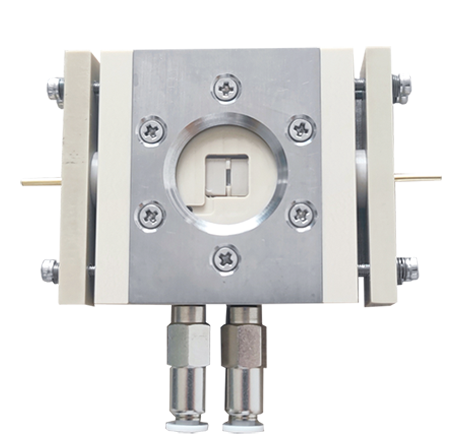

In situ microscopic observation pool

The reaction pool can be used to comprehensively observe the dendrite growth/dissolution process of metal negative electrodes during the charging and discharging process, meeting the observation needs of different metal negative electrodes (lithium, sodium, zinc, etc.), with simple design, good sealing, convenient operation, and repeatability.


Online Inquiry

Product parameter

材质: peek
配置可更换且稳定性强的玻碳电极或金属电极
窗口村质:石英
具有推气功能，在线加液
装置密封性好
光窗直径24mm
最小工作距离为1mm
样品空间尺寸为10X10mm矩形，厚度适用范围0.6-2mm
适用各类二次电池

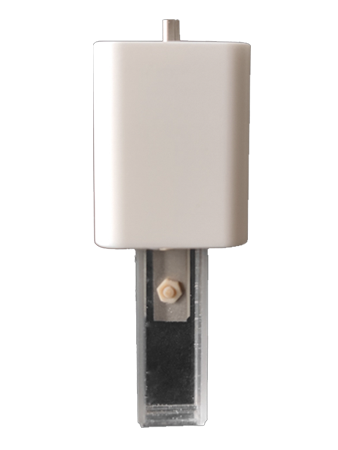

材质:石英
容积: 5ml 左右
电极材质:纯钛
电极间距: 3mm
外壳:四氟，使用密封圈密封
适用对称锌电池

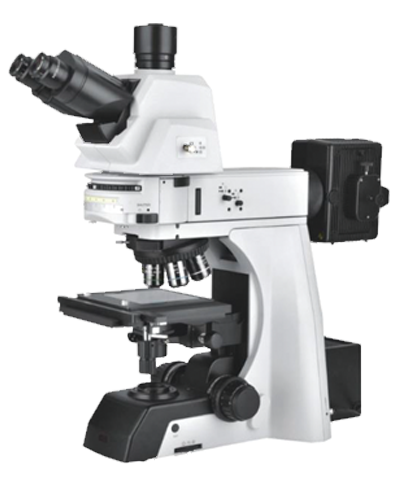

枝晶观测显微镜
光学系统枝晶观测光学系统
观察镜筒铰链式三目观察镜筒，可接驳成像系统，30°倾斜，瞳距45-79mm，眼点可调
目镜超大视野目镜WF10X(视场数φ25mm)，高眼点，屈光度可调
物镜枝晶观测专用物镜5X
枝晶观测专用物镜 10X
枝晶观测专用物镜20X
枝晶观测专用物镜50X
枝晶观测专用物镜 100X
物镜转换器内向式六孔物镜转换器
照明系统科勒照明系统，12V/100W 卤素灯，含起偏器、检偏器，颜色校正滤片
调焦系统粗微调同轴，粗调带锁紧装置 (防止撞镜头)可设置松紧，微调格值1um
载物台枝晶观测专用载物台，尺寸210*140mm，行程76*51mm，含电池专用夹具
成像接口C型接口1X
成像系统U806,SONY COMS,45fps (3072*2048)
U820,SONY COMS，15fps (5472*3648)
软件Yuescope 2.1


论文信息:

DOI:10.1002/adfm.202109749

DOI: 10.1021/acs.nanolett.1c04975

DOI: 10.1007/s12274-022-4688-5

DOI: 10.1039/dlee03624f
