Desktop micro fixed bed

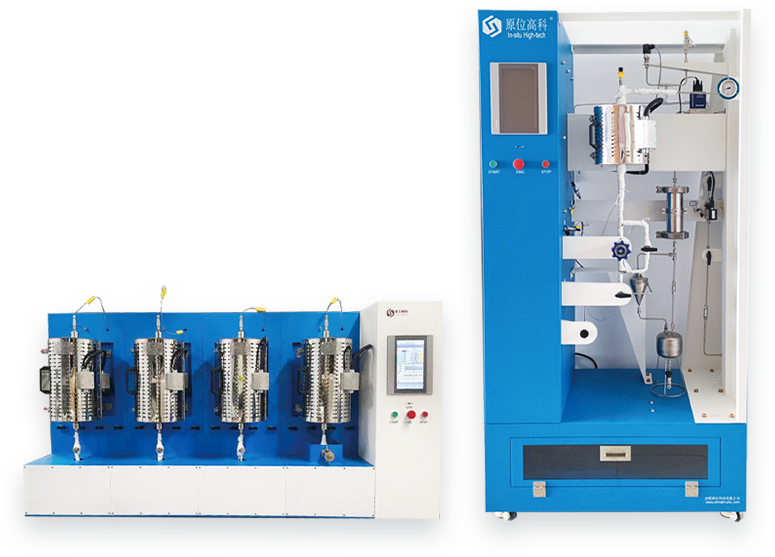

Desktop micro catalyst fixed bed reactor

Product introduction

The micro fixed bed reactor is used in the laboratory work surface, which has the characteristics of small size, compact structure, modular design and easy assembly and improvement. According to the reaction system, the number of reaction channels, gas and liquid channels, and the type of separation device can be customized to perfectly meet the actual needs of customers

Modular: Small modular desktop, free assembly according to the experimental system

Accuracy: pressure ± 0.25%FS, flow ± 1%FS, temperature difference in constant temperature zone ±1 ° C, temperature control accuracy ±1 ° C

Applicability: It can realize multi-gas phase and gas-liquid two-phase

Convenience: Temperature controlled by PID can be constant output to examine the reaction heat change. Data acquisition on the touch screen, the operation interface is simple. Automatic product sampling analysis, to achieve all-weather continuous operation


Online Inquiry

Product advantage

  • modularizationmodularization
    modularization
    Small modular desktop, free assembly, expansion and improvement according to the experimental system;
  • accuracyaccuracy
    accuracy
    Pressure ± 0.25% F.S, flow rate ± 1% F.S, constant temperature zone temperature difference ± 1 ℃, each The temperature difference between channels is ± 1 ℃, and the temperature control accuracy is ± 0.1 ℃;
  • ApplicabilityApplicability
    Applicability
    It can achieve multi gas phase, gas-liquid two-phase, and gas-liquid-solid three-phase reactions, and can be combined with GC/MS/IR to achieve online detection;
  • convenienceconvenience
    convenience
    The temperature is controlled by PID to ensure stable reaction temperature and can output continuously to observe changes in reaction heat. The data collection and control are integrated on the touch screen, with a simple and friendly operating interface, making it convenient and fast to use. Can achieve automatic product sampling and analysis, and achieve continuous operation 24/7 Transfer without manual intervention;
  • safetysafety
    safety
    Electrical safety interlocking, adopting a safety design that combines software and hardware, with overpressure and overheating alarms, and automatically stopping work if it is not handled when it is outdated; Misoperation protection; Power outage, gas outage handling, etc;

Product parameter

IndicatorsParameters
-1-4
Maximum operating temperature (°C)800 or determined according to requirements and material
Maximum operating pressure (MPa)10 or according to the requirements and material to determine
Feed compositionSingle gas phase, multi-component gas phase, gas-liquid two-phase, gas-liquid-solid three-phase
Feed pretreatment methodFiltration, premixing, preheating, vaporization and remixing, vaporization after melting, etc.
Gas/liquid feeding modeMass flow meter/bubble generator, syringe pump, plunger pump
Gas feed flow number2-4
Liquid feed flow number1-2
feed distribution error1%
Catalyst loading (mL)0.1-5
Inner diameter of reaction tube (mm)10 or as customized
Form height of catalytic bed (mm)Cylinder/10-200
Catalyst formPowder, granule, molding and overall structure
Material of reaction tubeQuartz, 316L, 310S, Hastelloy, GH high temperature alloy or according to customer requirements
Temperature control modePID
Heating modeJoule heating or ordinary electric heating can be single or multiple
Split ModeGas-solid, gas-liquid separation
Separation deviceCyclone separator, temperature controllable condenser
-Off-line sampling, on-line GC/MS/IR sampling
-Digital display instrument control/touch screen control/computer software control
Power supply20A,AC220V,50Hz grounding resistance<4ω<>
Exhaust airCustomized according to customer requirements
Dimensions (m)0.3x 0.45x0.8
SecurityElectrical safety chain, the use of hardware and software combination of safety design, overpressure, overtemperature alarm, outdated untreated automatic stop work, misoperation protection. Power cut, gas cut, etc.
